01 |
031204014 |

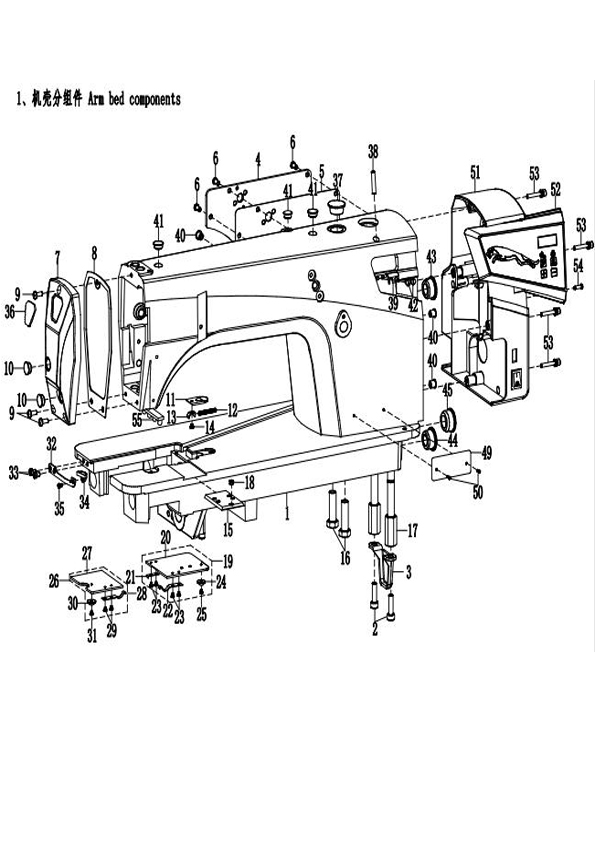

机壳部件 Arm bed compkte |
1 |
|
|
01-01 |
313800010201 |
PL机壳部件 |
1 |
|
|
02 |
PF3800006 |
底板支撑螺钉 Screw |
2 |
|
|
03 |
PF38000103 |
底板支撑板 Bed support |
1 |
|
|
|
|
|
0 |
|
|
04 |
PF38000104L |
后窗板 Side plate |
1 |
|
|
05 |
PF380001051 |
后窗板垫 Gasket |
1 |
|
|
06 |
PF6150211 |
后窗板螺钉 Side plaic screw |
8 |
|
|
07 |
PR3800DP010702 |
面板 Face plate |
1 |
|
|
08 |
PR3800DP0108 |
面板垫 Face plate gasket |
1 |
|
|
09 |
PF6150107 |
面板螺钉 Screw |
3 |
|
|
10 |
PF6150104 |
面板调节螺孔塞 Rubber plug |
2 |
|
|
11 |
PF38000111 |
凸轮盖压板 Cam cover latch |
1 |
|
|
12 |
PF38000112 |
凸轮盖压板弹簧 Spring |
1 |
|
|
13 |
PF38000113 |
凸轮盖压板弹簧座 Spring suspension |
1 |
|
|
14 |
PF38000114 |
凸轮盖压板座螺钉 Screw |
1 |
|
|
15 |
PF38000115 |
附件安装板 Attachment installing plate |
1 |
|
|
16 |
SCJ2102 |
拼装螺钉 Screw |
2 |
|
|
17 |
SK931204301-1 |
拼装长螺钉 Screw |
1 |
|
|
18 |
PF38000118 |
附件安装板定位螺钉 Screw |
1 |
|
|
19 |
PF38000119 |
凸轮盖部件 Cam cover asm |
1 |
|
|
20 |
PF38000120 |
凸轮盖 Cam cover |
1 |
|
|
21 |
PF38000121 |
凸轮盖托板 Cam cover |
1 |
|
|
22 |
PF38000122 |
凸轮盖弹簧 Spring |
1 |
|
|
23 |
PF38000118 |
凸轮盖弹簧螺钉 Screw |
4 |
|
|
24 |
PF38000124 |
凸轮盖导轮 Cam cover guide |
1 |
|
|
25 |
PF38000118 |
凸轮盖导轮螺钉 Screw |
1 |
|
|
26 |
PF38000126 |
推板部件 Bed slide asm |
1 |
|
|
27 |
PF38000127 |
推板 Bed slide |
1 |
|
|
28 |
PF38000128 |
推板簧 Spring |
1 |
|
|
29 |
PF38000118 |
推板簧螺钉 Screw |
2 |
|
|
30 |
PF38000130 |
推板导轮 Bed slide guide |
1 |
|
|
31 |
PF38000118 |
推板导轮螺钉 Screw |
1 |
|
|
32 |
PF38000132 |
推板锁簧 Bed slide lock spring |
1 |
|
|
33 |
PF5550725 |
推板锁簧螺钉 Screw |
2 |
|
|
34 |
PF38000134 |
推板簧把手 Latch |
1 |
|
|
35 |
PF5550834 |
推板簧把手螺钉 Screw |
1 |
|
|
36 |
PFQ50140 |
面板装饰牌 Plate |
1 |
|
|
38 |
SCJ2011 |
内六角螺钉 Screw |
1 |
|
|
39 |
PFQ5150 |
支架 Stand |
1 |
|
|
40 |
PF38000140 |
轴套定位螺纹孔塞 Rubber plug |
3 |
|
|
41 |
PF8420M-D30646 |
上轴套油线孔塞 Rubber plug |
3 |
|
|
42 |
PFQ5149 |
支架固定螺钉 Screw |
2 |
|
|
43 |
PF38000143 |
送料针距调节器孔塞 Rubber plug |
1 |
|
|
44 |
PF38000144 |
抬牙轴孔塞 Rubber plug |
1 |
|
|
45 |
PF38000145 |
下轴盲孔塞 Rubber plug |
1 |
|
|
49 |
PFQ60113 |
型号牌 Name Plate |
1 |
|
|
50 |
PFQ60121 |
型号牌铆钉 Rivet |
2 |
|
|
51 |
PFQ1190 |
电机罩组件 Pilley cover asm |
1 |
|
|
52 |
PFQ1190 |
操作面板组件 Operation panel |
1 |
|
|
53 |
SCJ2004 |
内六角螺钉 Screw |
4 |
|
|
54 |
SCJ2035 |
自攻螺钉 Screw |
1 |
|
|
55 |
PR38000150 |
LED灯 LED |
1 |
